Types of Door Hinges & Their Uses
Door hinges are integral components of any door, providing the necessary connection between the door and its frame while facilitating movement and functionality. They come in various designs, each tailored to specific applications, door types, and aesthetic preferences. Understanding the different types of door hinges is crucial for selecting the right hardware to meet both functional and stylistic requirements.
What is door hinge?
A door hinge is a mechanical device that allows for the controlled rotation or movement of a door around a fixed point, typically enabling the door to swing open and closed. Hinges consist of two interconnecting plates, often attached to the door and the door frame or another stationary surface, joined by a pin or rod. This design permits the door to pivot smoothly, facilitating its movement while maintaining a stable connection between the door and its frame.
Door hinges play a crucial role in the functionality of doors, allowing them to swing open for access and close securely for privacy, safety, or environmental control. They come in various types and designs, each tailored to specific applications based on factors such as door size, weight, style, and intended use. Hinges are commonly installed on doors in residential, commercial, and industrial settings, and their selection depends on the specific requirements and design considerations of the door they are intended for.

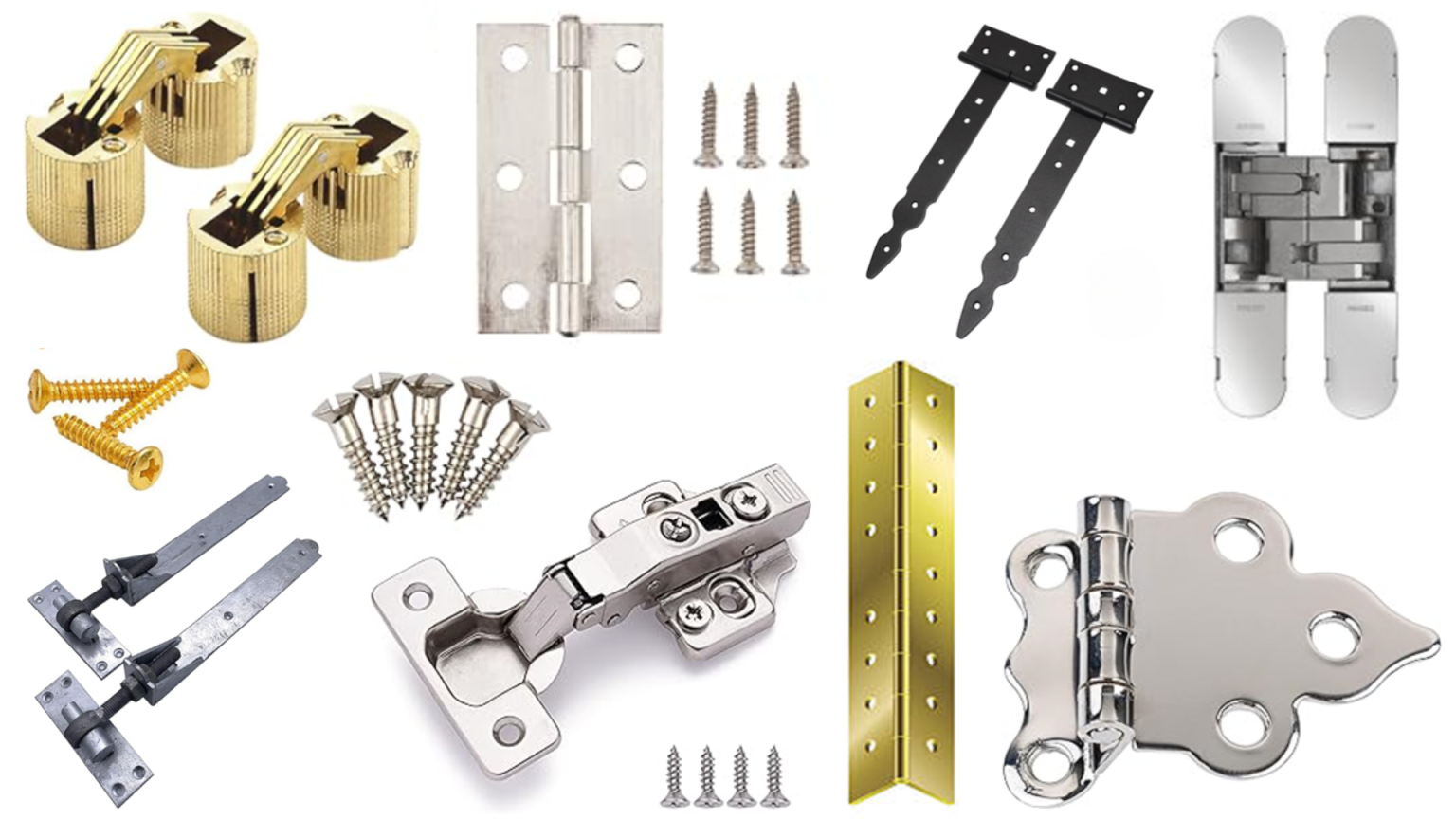

Types of Door Hinges
There are various types of door hinges, each designed for specific applications based on factors such as door type, weight, and function. Here are some common types of door hinges and their uses:

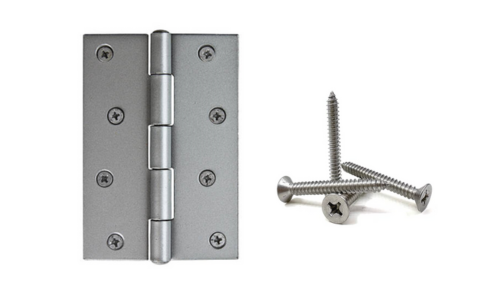

Butt Hinge
Butt hinges are one of the most common types of door hinges used for doors, windows, cabinets, and other applications. Butt hinges consist of two rectangular metal plates, known as leaves, joined by a pin or rod at their center. The leaves are typically of equal length and width. One leaf is attached to the door frame or the stationary object, and the other leaf is attached to the door itself. The pin or rod allows the two leaves to rotate relative to each other, enabling the door to swing open and closed.
Butt hinges are generally surface-mounted, meaning they are visible when the door is closed. They can be installed with various methods, including screws. Butt hinges are versatile and widely used in residential, commercial, and industrial settings. They are suitable for doors, windows, cabinets, and other hinged applications. Butt hinges come in various sizes and materials to accommodate different door weights and styles.

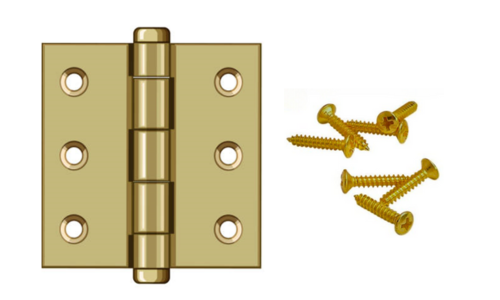

Ball-Bearing Hinge
A ball-bearing hinge is a type of hinge equipped with ball bearings between the hinge knuckles to reduce friction and provide smoother door operation. The ball bearings are typically placed in the joint between the hinge knuckles, allowing for easy and quiet movement of the hinge components.
Installed similarly to traditional hinges but with added attention to proper alignment due to the precision of the ball-bearing mechanism. Commonly used in heavy doors or doors that experience frequent use. Suitable for residential, commercial, and industrial applications. Ball-bearing hinges typically require less maintenance due to reduced friction.

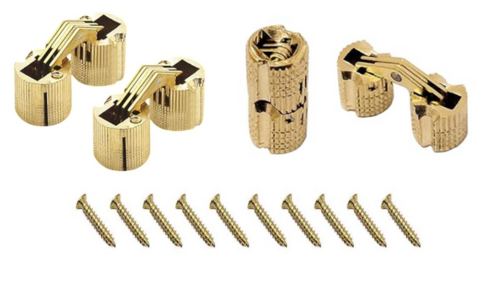

Barrel Hinge
A barrel hinge, also known as a barrel pin hinge or a barrel hinge, is a type of hinge that uses a cylindrical barrel or a pin as the central pivot point for the rotational movement of the door.
Consists of a long cylindrical barrel or pin that serves as the axis of rotation. The barrel is typically inserted through the door and the frame or door jamb. Barrel hinges may have a single barrel or multiple barrels for added support.
Suited for heavy doors or gates due to their robust design. Commonly used in outdoor applications where durability is essential. Typically surface-mounted, with the cylindrical barrel passing through the door and the frame. May require precise alignment during installation to ensure smooth operation.

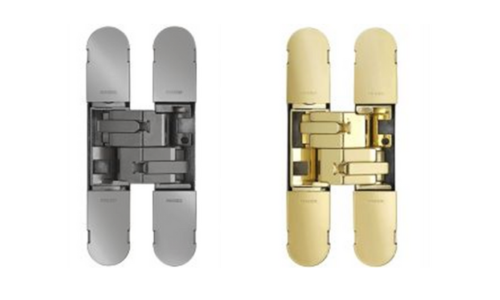

Concealed Hinge
Concealed hinges, also known as hidden hinges, are a type of hinge designed to be concealed from view when the door or cabinet is closed. These hinges are commonly used for furniture, cabinets, and doors where a clean and unobtrusive appearance is desired.
Hidden from view when the door or cabinet is closed, providing a seamless and minimalist look. Typically, it consists of two parts: one part is attached to the door, and the other is attached to the cabinet frame. The two parts are connected by a hinge pin or rod, allowing the door to pivot.
Requires precise installation to ensure proper functionality and a seamless appearance. Can be challenging to install for novices due to the need for accuracy.

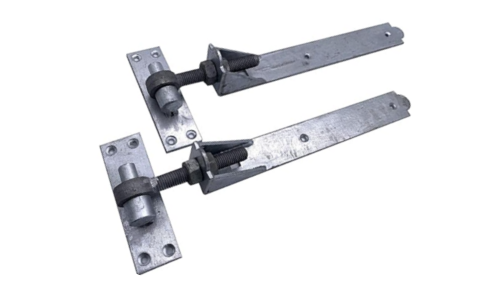

Heavy Duty Hinge
Heavy-duty hinges are designed to handle larger and heavier doors or gates, providing additional strength and durability compared to standard hinges. These hinges are built to withstand the increased weight and stress associated with substantial doors or gates.
Suited for doors and gates that exceed the weight capacity of standard hinges. Used in industrial, commercial, and residential settings where heavy-duty doors are installed.
Mounting may involve screws or bolts, depending on the hinge design and the application. Holes for screws or bolts should align properly for secure installation.

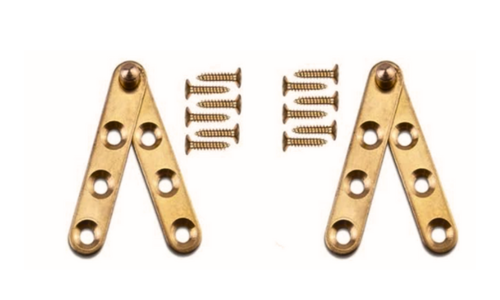

Knife Hinge
A knife hinge, also known as a pivot hinge or pivot knife hinge, is a type of hinge that allows a door or panel to pivot vertically around a central point. These hinges are named for their resemblance to a knife blade. Knife hinges are often used for cabinets, doors, and other applications where a hidden or minimalist appearance is desired.
Consists of two interlocking plates, one attached to the door and the other to the frame or cabinet. The plates are connected by a pivot pin, resembling a knife blade. Allows the door to pivot vertically around the hinge point.
It requires precise installation to ensure proper alignment and smooth operation. Knife hinges are typically mortised into the door and frame for a flush appearance.

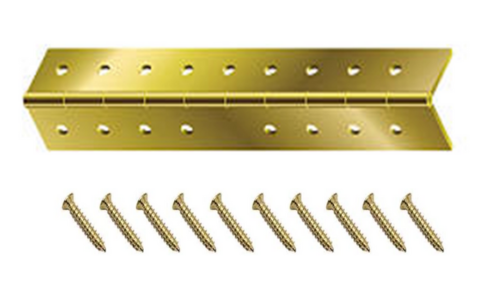

Piano Hinge
A piano hinge, also known as a continuous hinge or continuous piano hinge, is a long, narrow hinge that runs the entire length of a door or panel. This type of hinge is characterized by its continuous and uniform appearance, providing support along the entire edge of the door or lid. Piano hinges are commonly used in applications where durability, strength, and a clean, unobtrusive look are important.
Also Read
- Types of Door Lock
- Types of Doors
- Types of Wood Joints and their Uses
- Steel Deck Installation and Construction
- Concrete Stairs Reinforcement Details

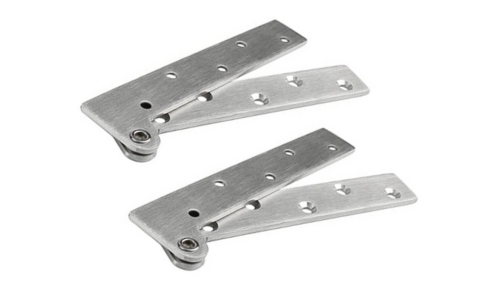

Pivot Hinge
A pivot hinge is a type of hinge that allows a door or gate to rotate around a single pivot point, typically located near the top or bottom of the door. Pivot hinges provide a unique and often aesthetically pleasing solution for doors that need to swing in both directions.
Commonly used for interior doors, closet doors, and partitions. Suitable for doors where a clean and modern appearance is desired. Pivot hinges can be installed at the top or bottom of the door, depending on the specific design and application. Some pivot hinges may require a specialized floor or ceiling bracket.

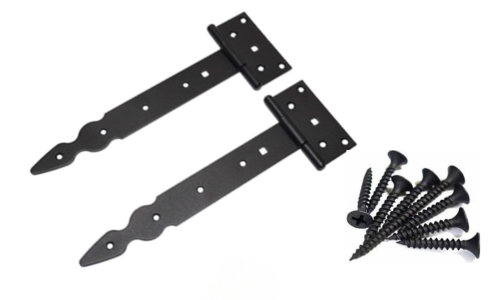

Strap Hinge
A strap hinge is a type of door hinge characterized by its long and decorative strap-like design. These hinges are often used for heavy doors, gates, and other applications where both functionality and an aesthetically pleasing appearance are important.
Commonly used for gates, barn doors, carriage doors, and other exterior applications. Suitable for both functional and decorative purposes.

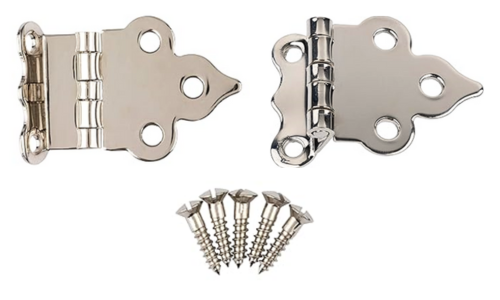

Offset Hinge
An offset hinge, also known as an off-set hinge or an offset pivot hinge, is a type of door hinge that features an off-center pivot point, creating an asymmetrical alignment. This design allows the hinge to move the attached door or panel away from its typical swing axis.
Commonly used for doors or panels that need to clear obstacles, trim, or other architectural features. Suitable for situations where a standard hinge alignment may not be practical.

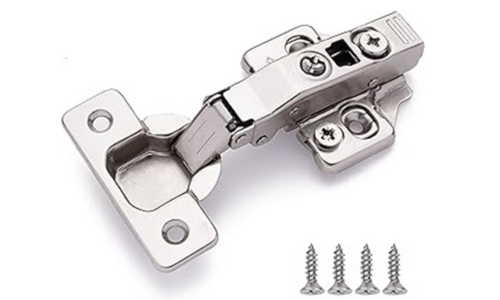

Overlay Hinge
An overlay hinge is a type of hinge specifically designed for cabinet doors where the door overlays, or covers, the cabinet frame when closed. Overlay hinges are commonly used in kitchen cabinets and other furniture where a clean and modern appearance is desired. These hinges allow the door to fully cover the front edges of the cabinet, providing a seamless look.
The hinge is typically installed on the inside of the cabinet frame and the rear face of the cabinet door. Proper installation ensures that the door aligns well with adjacent doors and cabinet components.
