Lightweight Concrete

What is Lightweight Concrete?

Lightweight concrete is a type of concrete that has a reduced density compared to traditional concrete. It is specifically designed to have a lower unit weight while maintaining sufficient strength and durability. The reduction in weight is achieved by incorporating lightweight aggregates or by using foaming agents that introduce air or gas bubbles into the concrete mixture.

Classification of Lightweight Concrete

Lightweight concrete can be classified into different types based on various factors such as the method of production, density range, and intended applications. Here are some common classifications of lightweight concrete:

Based on Density:

  • Low-density lightweight concrete: This type of lightweight concrete has a density ranging from about 500 kg/m³ (31 lb/ft³) to 1600 kg/m³ (100 lb/ft³). It is commonly used in applications where weight reduction is a priority, such as insulation fills, roof decks, and non-load-bearing structures.
  • Medium-density lightweight concrete: Medium-density lightweight concrete has a density ranging from about 1600 kg/m³ (100 lb/ft³) to 2000 kg/m³ (125 lb/ft³). It offers a balance between weight reduction and structural strength, making it suitable for a wide range of applications, including walls, floors, and precast elements.
  • High-density lightweight concrete: High-density lightweight concrete has a density ranging from about 2000 kg/m³ (125 lb/ft³) to 2800 kg/m³ (175 lb/ft³). It provides improved strength and durability while still offering a reduction in weight. It is commonly used in structural applications, such as load-bearing walls and structural elements.

Based on Lightweight Aggregates

  • Lightweight aggregate concrete: This type of lightweight concrete uses lightweight aggregates, such as expanded clay, shale, slate, or slag, as a replacement for traditional heavy aggregates.
  • Aerated concrete: Also known as cellular concrete, aerated concrete is produced by introducing air or gas bubbles into the concrete mixture, resulting in a cellular structure. The air bubbles are typically generated by using aluminum powder or foaming agents.

Based on Production Method

  • Lightweight aggregate concrete: This is the most common type of lightweight concrete, where lightweight aggregates are mixed with cement, water, and other additives to form the concrete mixture.
  • Autoclaved aerated concrete (AAC): AAC is produced by mixing finely ground silica sand or fly ash with cement, lime, water, and an expanding agent. The mixture is then cured under high-pressure steam to form lightweight concrete blocks or panels.

Based on Structural Application

  • Structural lightweight concrete: This type of lightweight concrete is specifically designed for structural applications where both weight reduction and adequate strength are required. It is commonly used in high-rise buildings, bridges, and other load-bearing structures.
  • Non-structural lightweight concrete: Non-structural lightweight concrete is used in applications where weight reduction is the primary concern, and high strength is not essential. It is often used for insulation purposes, thermal fills, and non-load-bearing partitions.

Types of Lightweight Concrete

There are several types of lightweight concrete based on different factors such as the lightweight aggregates used, production methods, and intended applications. Here are some common types of lightweight concrete:

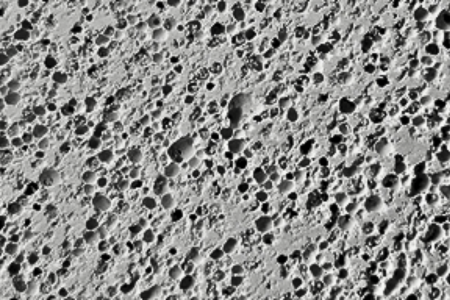

Aerated Concrete

Aerated concrete, also known as cellular concrete, is produced by introducing air or gas bubbles into the concrete mixture. This is achieved through the use of aluminum powder or foaming agents.

Aerated Concrete

The air bubbles create a cellular structure, reducing the density of the concrete. Aerated concrete can be further classified into two types:

AAC is produced by mixing finely ground silica sand or fly ash with cement, lime, water, and an expanding agent. The mixture is then cured under high-pressure steam, resulting in lightweight concrete blocks or panels with a cellular structure.

Foam concrete is made by mixing a foam agent into a cement-water slurry. The foam agent creates stable bubbles, resulting in a lightweight concrete with a high proportion of air voids. Foam concrete is often used for insulation, filling voids, or in applications where low density is required.

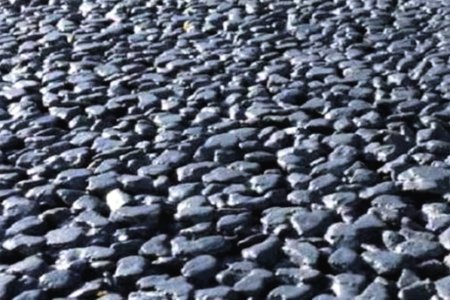

No-Fines Concrete

No-fines concrete is a type of lightweight concrete that contains no fine aggregates, such as sand. It consists of cement, coarse aggregates, and water. The absence of fine aggregates creates voids within the concrete, reducing its weight. No-fines concrete is primarily used in non-structural applications, such as insulation fills and lightweight subgrades.

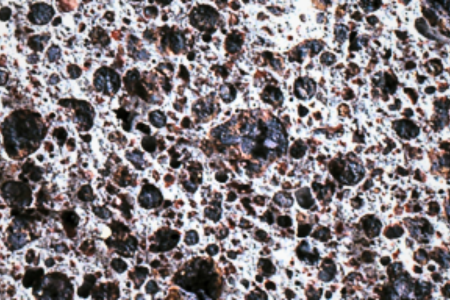

Lightweight Aggregate Concrete

Lightweight aggregate concrete is produced by replacing a portion of traditional aggregates with lightweight aggregates. These lightweight aggregates can include expanded shale, clay, slate, perlite, vermiculite, or other synthetic materials.

The use of lightweight aggregates reduces the density of the concrete while maintaining its structural integrity. It finds applications in various construction projects, including floors, roofs, precast elements, and lightweight blocks.

Lightweight Aggregate Types:

There are two types of lightweight aggregates:

  • Lightweight natural aggregate.
  • Lightweight artificial aggregate

These aggregates are further subdivided into the following categories:

Natural Lightweight Aggregates Artificial Lightweight Aggregates
Diatomite
Foamed Slag
Pumice
Artificial Cinders
Scrofula
Thermocol beads
Rice Husk
Bloated Clay
Cinders from volcanoes
Expanded shales and slates

Uses of Lightweight Concrete

Lightweight concrete offers various advantages and finds applications in a wide range of construction projects. Some common uses of lightweight concrete include:

1. Insulation

Lightweight concrete has excellent thermal insulation properties, making it suitable for insulating roofs, walls, and floors. It helps to reduce heat transfer, improve energy efficiency, and maintain comfortable indoor temperatures.

2. Building Construction

Lightweight concrete is used in various building construction applications, including:

It is used to construct lightweight floor and roof systems, reducing dead loads on the structure while maintaining structural integrity.

Lightweight concrete blocks or panels are employed in constructing partition walls, offering improved thermal and acoustic insulation compared to traditional materials.

Lightweight concrete is used for cladding and façade systems, providing both aesthetic appeal and insulation benefits.

Due to its inherent fire resistance, lightweight concrete is utilized in fireproofing applications, such as fire-rated walls, barriers, and enclosures.

3. Infrastructure Projects

Lightweight concrete is employed in various infrastructure projects, including:

It is used to reduce the weight of bridge decks, resulting in reduced stress on support structures and improved load-carrying capacity.

Lightweight concrete is utilized in tunnel linings, reducing the overall weight and allowing for easier excavation and installation.

4. Pre-cast Concrete Products

Lightweight concrete is commonly used in the production of pre-cast concrete products, such as:

Lightweight concrete blocks and pavers are used for wall construction, landscaping, and pavement applications.

Lightweight concrete is used to create architectural elements such as columns, panels, and decorative features due to its versatility and ease of molding.

5. Repair and Retrofitting

Lightweight concrete can be utilized in repair and retrofitting projects to reduce the additional load on existing structures while providing enhanced durability and improved performance.

Also read: Fiber Cement Flooring | Foam Concrete | Steel Deck Installation and Construction

Advantages of Lightweight Concrete

  • It lowers the structure’s dead load.
  • Low cost of transportation and handling due to ease of handling
  • It improves workability.
  • Lightweight concrete has reduced heat conductivity.
  • Using lightweight concrete in the rooms where air conditioning will be installed during building construction will result in good thermal comfort and decreased electricity usage.
  • Comparatively stronger and more durable
  • Better resilience to freezing and thawing than typical concrete
  • The use of lightweight concrete provides a disposal solution for industrial wastes such as fly ash, clinkers, slag, etc.
  • It has excellent fire resistance.
  • The use of lightweight concrete provides overall economy.

Disadvantages of Lightweight Concrete

  • The water content of lightweight concrete mixtures tends to be highly sensitive.
  • It is difficult to lay and finish because of the porosity and angularity of the aggregate, so specialized labor is required.
  • In some situations, cement mortar will separate the aggregates and cause them to float on the surface.
  • To ensure the correct mixing of concrete, the mixing period is relatively longer than for standard concrete.
  • Lightweight concrete is porous and has weak resistance.
