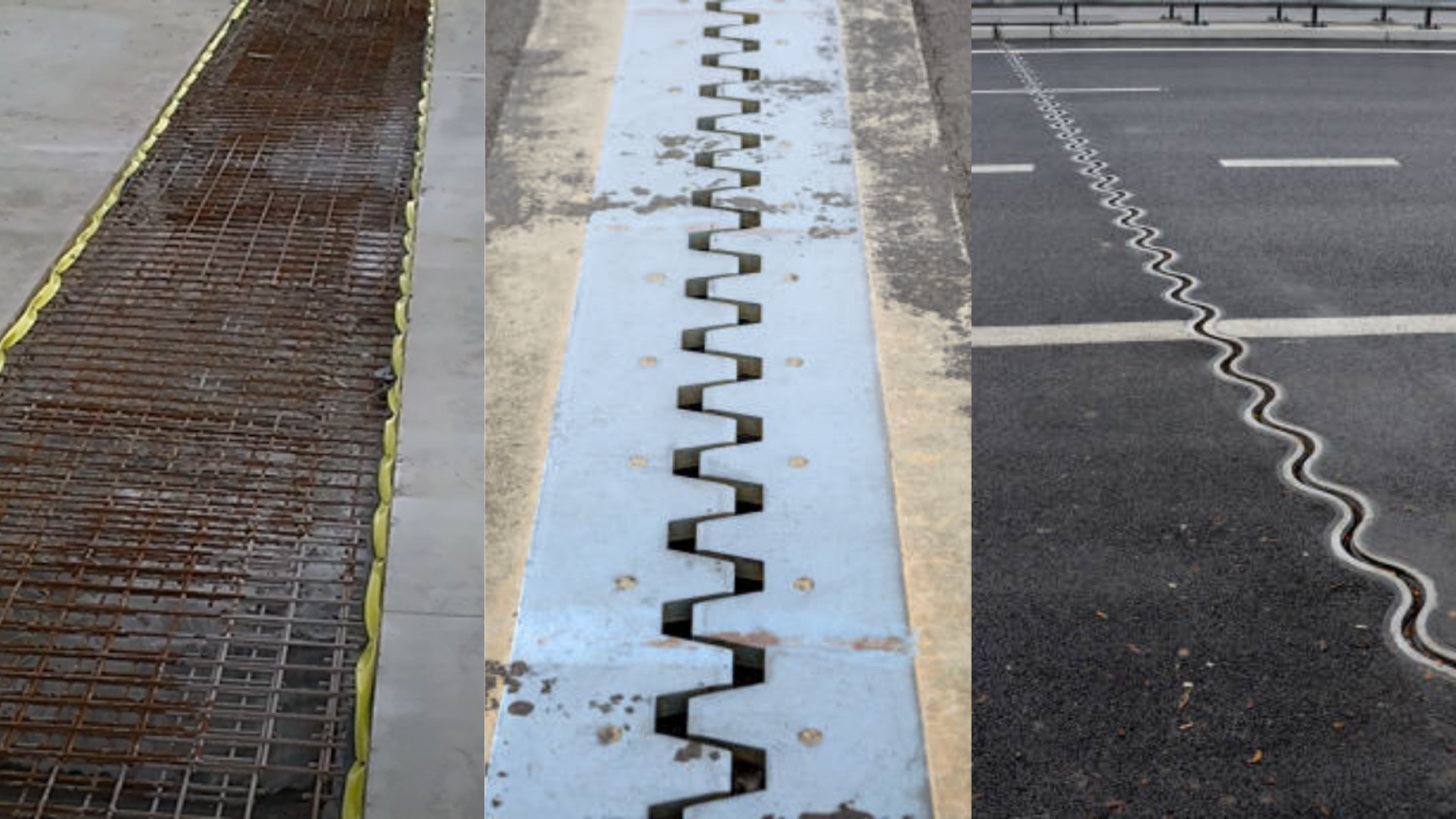

Concrete joints

Construction Joints in Concrete

In this article, we will explore the various types of construction joints used in concrete structures. Construction joints are intentional breaks or separations in the concrete that are created to accommodate construction processes, allow for movement, or facilitate the installation of embedded items. These joints play a crucial role in maintaining the structural integrity and durability of the concrete.

What is Construction Joint?

A construction joint is a planned and deliberate break or separation in a concrete structure that allows for the construction process to be divided into manageable sections. It is typically created by intentionally stopping the pouring of concrete at a specific location and resuming it at a later time.

The purpose of a construction joint is to control and manage the natural shrinkage and expansion of concrete as it cures and to minimize the development of cracks. By creating a joint, the concrete is allowed to contract and expand without causing excessive stress or cracking in the structure.

Construction joints are commonly used in large concrete projects, such as buildings, bridges, dams, and highways, where pouring the entire structure in one continuous operation is not feasible or practical. They are strategically placed at predetermined locations, typically at points of structural significance or where changes in construction methods or materials occur.

To ensure the effectiveness of a construction joint, proper joint preparation is essential. This involves cleaning the joint surface, removing any loose debris or laitance, and providing a suitable joint filler or sealant to prevent the ingress of water or other contaminants.

Types of Construction Joints in Concrete

There are several types of construction joints commonly used in concrete construction. Each type serves a specific purpose and is designed to accommodate different movement and construction requirements. Here are some of the most common types of construction joints:

Expansion Joints

Expansion joints are a type of concrete joint that is intentionally created in a concrete structure to accommodate the expansion and contraction of the concrete caused by temperature changes. These joints help prevent uncontrolled cracking, damage, and structural problems that can result from the natural movements of concrete. Expansion joints are particularly important in larger concrete structures and are common in infrastructure projects such as bridges, highways, and buildings.

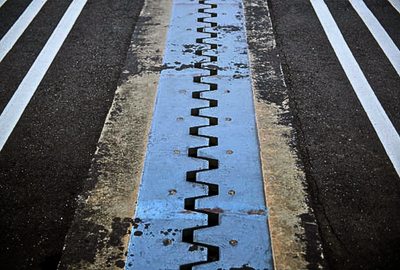

Concrete Joints| Expansion Joint

The location and design of expansion joints are crucial aspects of construction, and engineers carefully plan their placement based on factors such as temperature fluctuations, the size of the structure, the expected movement, and other environmental conditions. Properly designed and maintained expansion joints are essential for the structural integrity and performance of concrete structures.

Concrete Construction Joints

A concrete construction joint, also known as a cold joint, is a point in a concrete structure where two different concrete placements meet. These joints occur when concrete placement is temporarily halted and then resumed at a later time, resulting in a separation between the fresh concrete and the previously placed concrete. Construction joints are typically formed when a concrete pour cannot be completed in a single continuous operation or when there’s a need to make a planned separation between concrete placements for various reasons.

Construction joints are introduced to create a planned transition or separation between two concrete placements. These joints allow work to be performed in stages, accommodate project scheduling, and prevent undesirable structural connections between the old and new concrete.

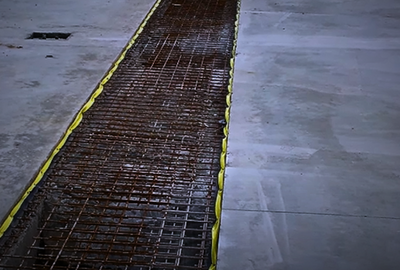

Concrete Joints | Construction Joint

To ensure a strong and stable connection, surfaces at the construction joint may be cleaned, roughened, or coated with bonding agents or adhesives, depending on the project requirements.

Common applications of construction joints include large concrete slabs, such as those found in building floors, pavements, and bridge decks. In such cases, construction joints are introduced to separate different pours made on different days or under varying conditions.

It’s important to follow best practices and adhere to engineering and construction guidelines when working with construction joints to ensure that the joints perform their intended function and do not result in structural weaknesses or potential points of failure in the concrete structure.

Contraction Joints

A contraction joint is a planned gap or separation intentionally incorporated into a concrete structure to control and manage the shrinkage, thermal expansion, and contraction of the concrete. These joints are designed to induce cracking in a controlled and predictable manner, preventing uncontrolled cracking and maintaining the overall integrity of the structure.

Contraction joints are typically straight lines or formed grooves that are created by cutting or tooling the concrete. These joints are placed at regular intervals depending on the specific requirements of the project. The spacing between contraction joints is determined based on factors such as the type of concrete, anticipated temperature changes, slab thickness, and local conditions.

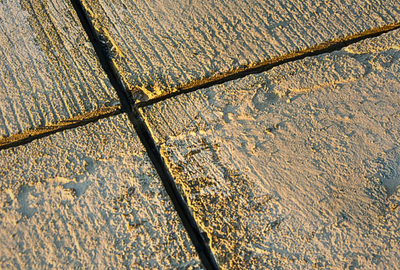

Concrete Joints | Contraction Joint

In some cases, contraction joints are filled with joint sealants or joint fillers to protect the edges of the joints and reduce water and debris infiltration, which can further help preserve the integrity of the joint and the overall structure.

Common applications of contraction joints include concrete floors (e.g., warehouses, industrial buildings), pavements (e.g., roads, sidewalks), building structures (e.g., walls, slabs), and other concrete elements where controlling cracking is essential to ensure long-term performance and appearance.

Isolation joints

An isolation joint is a separation or gap intentionally placed in a concrete structure to prevent the transfer of loads, movements, or stresses between different sections of the structure or between the structure and adjacent components. Isolation joints are typically introduced to ensure that there is no physical connection or bonding between these sections, thereby allowing for independent movement or settlement.

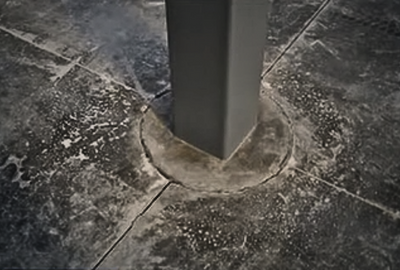

Concrete Joints| Isolation Joint

Proper design and installation of isolation joints are essential to ensure their effectiveness in preventing load transfer and allowing independent movement of concrete sections. It’s important to consider the specific needs of the project and choose appropriate materials for the isolation joint to effectively isolate the adjoining sections of concrete.
