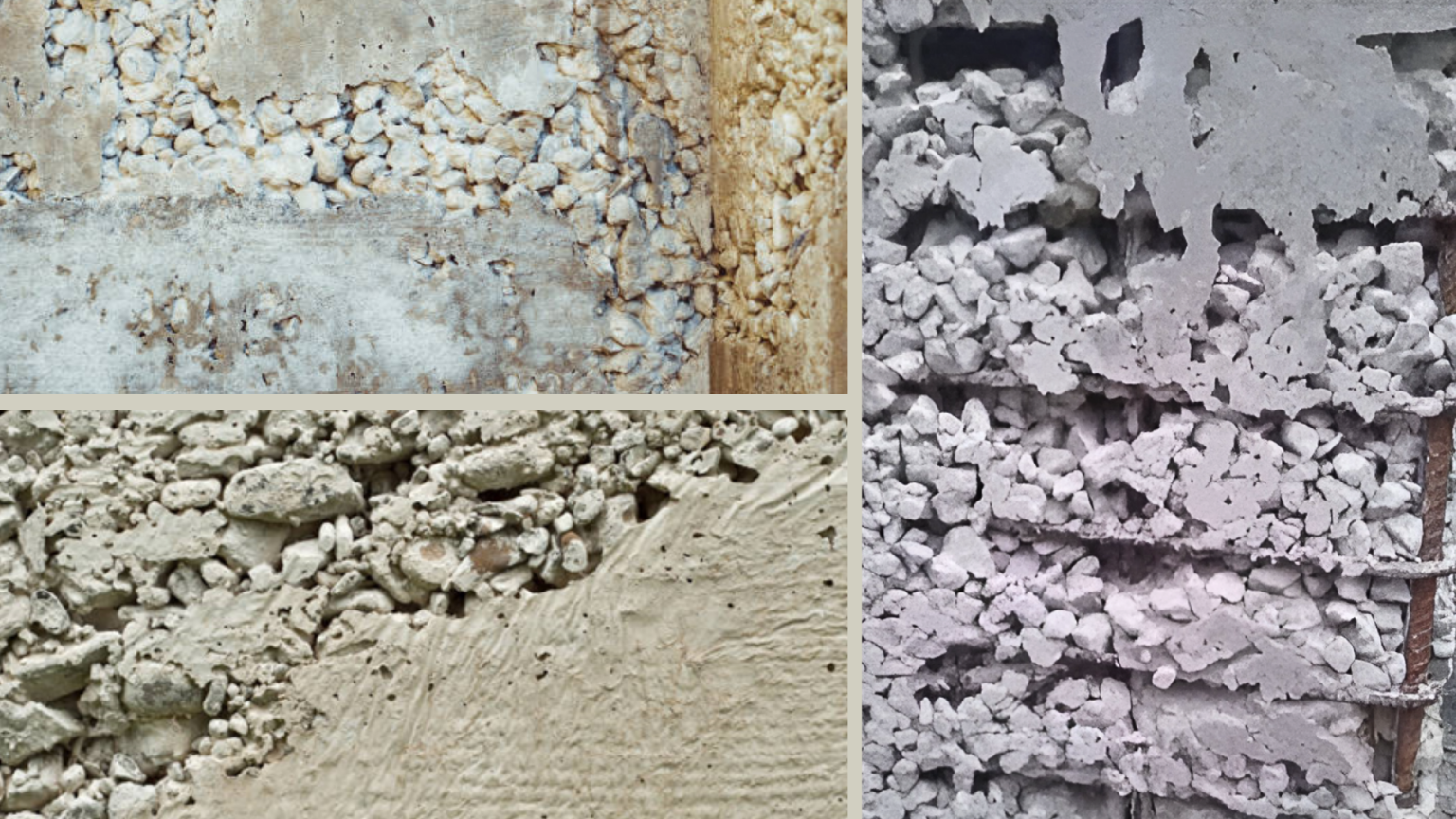

Honeycombing in concrete

In this article, we will cover various aspects of honeycombing in concrete, including the repair method, the causes of honeycombing, and preventive measures to avoid it.

What is Honeycombing?

Honeycombing in a reinforced concrete (RCC) structure refers to a condition where voids or spaces are present in the concrete surface, making the coarse aggregates visible. These voids occur when the concrete mixture does not properly fill the formwork or when there is inadequate compaction and consolidation during the construction process.

Honeycombing is considered a defect in the concrete surface and can have negative implications for the structural integrity and performance of the RCC structure. The term “honeycombing” is used because the voids resemble the cells of a honeycomb when observed on the concrete surface.

The presence of honeycombing can lead to several issues. First, it weakens the structural integrity of the concrete, as the voids reduce the amount of solid material and compromise the load-bearing capacity of the structure. Second, honeycombing allows for the ingress of harmful agents, such as water, air, and chemicals, which can further deteriorate the concrete and its reinforcement over time. Additionally, honeycombing affects the aesthetic appearance of the concrete surface, making it look rough and unfinished.

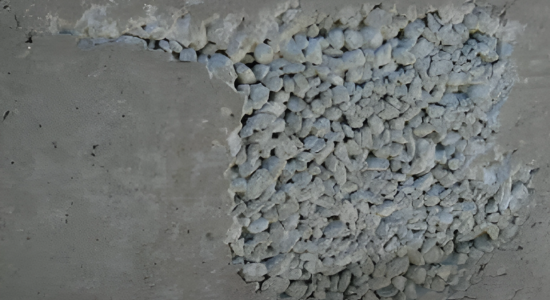

Honeycombing in concrete

Method for Repairing Honeycomb Concrete

The grouting technique is used to fix honeycombs in concrete structures. Using a grout pump, the grout mixtures are pumped under pressure into the structure’s cracks and voids. The first step is to use a non-destructive test or visual inspection to determine the width and depth of the honeycomb area. Whether the honeycomb is small or large, repair is carried out based on the analysis.

Repair Method for Small Honeycombs

Small honeycombs can be repaired with construction grouts. It is fixed by putting grout over it after bonding and anti-corrosive agents have been applied.

Repair Method for Large Honeycombs

Begin by removing any loose aggregate from the affected area. This can be done by gently chipping away the loose material with a chisel or other suitable tools.

Thoroughly clean the concrete surface to remove dirt, dust, and fine particles. This can be done using a wire brush, broom, or a high-pressure water jet. Ensure that the surface is free from any loose material that could hinder the grouting process.

Wash the concrete surface with water and allow it to dry completely before proceeding with the repair. This ensures proper adhesion of the grout material.

If the honeycomb covers a large area, it may be necessary to create a patch for proper bonding. This can be done by applying a suitable patching material according to the manufacturer’s instructions.

If formwork is required to contain the grout material, place the formwork in position before proceeding. Ensure that the formwork is secure and properly aligned.

Apply an anti-corrosive bonding agent to the reinforcement in the honeycomb area. This helps ensure additional protection and improves the bond between the grout material and the reinforcement.

Fill the honeycomb voids with the grout material. Follow the mix proportions and mixing instructions provided by the manufacturer to achieve the desired consistency and flowability of the grout.

After filling the honeycomb with the grout material, apply a self-curing repair mortar over the repaired area. This helps enhance the durability and strength of the repair.

If formwork was used, remove it according to the manufacturer’s guidelines. This is typically done once the grout material has sufficiently cured.

Allow the applied repair material to cure until it reaches sufficient durability. Follow the manufacturer’s recommendations for curing time and conditions.

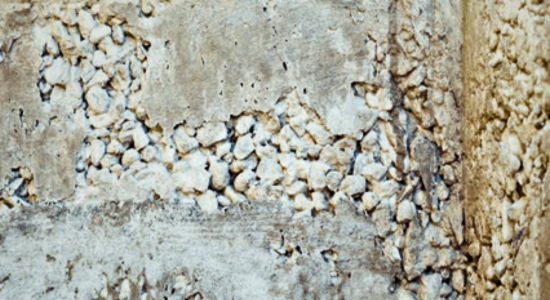

Honeycombing in concrete

Reason for Honeycombing

Honeycombing in RCC structures can occur due to several reasons, including:

Inconsistent Concrete Mix

If the concrete mix used in the construction is not consistent, meaning it has variations in its composition or lacks proper proportioning of ingredients, it can lead to honeycombing.

Steel Congestion

When there is excessive congestion of steel reinforcement within the formwork, it can hinder the proper flow and spread of concrete to all corners, resulting in honeycombing.

Inappropriate Concrete Applicability and Positioning

If the concrete used is not suitable for the specific application or if it is not properly placed and positioned within the formwork, it can lead to the formation of voids and honeycombing.

Inflexible or Non-Watertight Formwork

The formwork, which is the temporary structure that holds the concrete in place until it hardens, should be rigid and watertight. If the formwork is not properly constructed or if it has leaks or gaps, it can result in uneven concrete placement and honeycombing.

Inadequate Compaction/Compression

Insufficient compaction or compression of the concrete during the construction process can result in poor consolidation and the formation of voids, causing honeycombing.

Early Setting of Concrete

If the concrete sets or hardens too quickly before it has been properly placed and compacted, it can result in incomplete filling of the formwork and the formation of voids and honeycombing.

High Free Fall of Concrete

When pouring concrete from a significant height, known as free fall, it can cause segregation and improper distribution of aggregates within the mixture. This can lead to honeycombing in the hardened concrete.

Inaccurate Detailing and Steel Fixing

The detailing and fixing of steel reinforcement within the concrete structure should be done accurately according to the design specifications. Any errors or inaccuracies in the placement of steel can result in improper concrete flow and honeycombing.

How to Avoid Honeycombing in RCC Structures

To avoid honeycombing in reinforced concrete (RCC) structures, it is important to follow proper construction practices and techniques. Here are some measures that can help prevent honeycombing:

Proper Mix Design

Ensure that the concrete mix design is appropriate for the specific project requirements. The mix should have the right proportion of cement, aggregates, water, and admixtures to achieve the desired strength and workability.

Adequate Compaction

Thoroughly compact the concrete during the placement process to eliminate air voids. This can be achieved through techniques such as vibration, tamping, or using self-compacting concrete. Proper compaction ensures that the concrete fills all the formwork and surrounds the reinforcement properly.

Consistent Concrete Placement

Maintain a consistent rate of concrete placement to avoid delays or interruptions that can lead to cold joints or inadequate compaction. Avoid excessive pouring heights that can cause segregation and poor consolidation.

Proper Formwork

Ensure that the formwork is properly constructed, securely fixed, and adequately sealed to prevent leakage. The formwork should be designed to withstand the pressure of the concrete during placement and provide a smooth surface finish.

Correct Concrete Placement Technique

Use appropriate techniques to place the concrete, such as drop chutes, tremie pipes, or pumping, to minimize the chances of segregation and ensure uniform distribution.

Proper Curing

Implement proper curing methods to maintain moisture and temperature conditions necessary for the concrete to gain strength. Adequate curing helps prevent surface drying and cracking, which can lead to honeycombing.

Skilled Workmanship

Employ skilled and experienced workers who are familiar with concrete placement and compaction techniques. Proper training and supervision can ensure that the construction team follows the correct procedures to minimize the risk of honeycombing.

Quality Control

Regularly monitor and inspect the concrete during the construction process to identify any potential issues. Conduct tests, such as slump tests and air content tests, to ensure the concrete meets the required specifications.
