Bridge Railing: Types and Common Features of Bridge Railings
In this article, we will discuss various types of bridge railings commonly used in infrastructure projects. Bridge railings play a crucial role in ensuring the safety of motorists and pedestrians by providing containment and redirecting vehicles in the event of an accident. Let’s explore some of the most common types:
What is bridge railing?
A bridge railing, also known as a bridge guardrail or bridge parapet, is a protective barrier installed along the sides of a bridge to enhance safety & prevent vehicles or pedestrians from accidentally falling off the bridge. It serves as a crucial safety feature by providing a physical barrier that helps to contain vehicles within the bridge boundaries and protect pedestrians & cyclists from potential hazards.
The main purpose of a bridge railing is to prevent accidents & provide a level of security for those using the bridge. It helps to guide and direct the flow of traffic, keeping vehicles on the designated roadway and preventing them from veering off the edge. Additionally, bridge railings provide a sense of security for pedestrians and cyclists, giving them a physical barrier to lean against or hold onto while crossing the bridge.
Bridge railings are typically made of durable materials such as concrete, steel, or aluminum. The design and height of the railing depend on various factors, including the type of bridge, the location, the surrounding environment, and local safety regulations. The railing may consist of vertical posts or balusters connected by horizontal rails or panels. The height and spacing of these components are carefully designed to meet safety standards and prevent any potential accidents.
In addition to serving as a safety feature, bridge railings can also have aesthetic value. They can be designed to complement the architectural style of the bridge or the surrounding landscape, enhancing the overall visual appeal of the structure.
Common Features of Bridge Railings
Bridge railings are essential components of bridges that provide safety and protection for vehicles and pedestrians. While specific designs may vary, there are some common features that can be found in many bridge railings. Here are a few of these common features:
Handrail: The upper part of the railing that provides a handhold for pedestrians and serves as a visual guide for drivers.
Baluster or Post: Vertical supports that connect the handrail to the bridge deck. They provide structural support and help to distribute the impact forces.
Midrail: A horizontal member located between the handrail and the bridge deck. It provides additional protection and prevents smaller vehicles or objects from passing through the railing.
Toeboard: A low barrier at the bottom of the railing that prevents debris or small objects from falling off the bridge.
Reflectors or Markings: Reflective materials or markings may be added to the railing to enhance visibility, especially during nighttime or low-light conditions.
Different Types of Bridge Railing

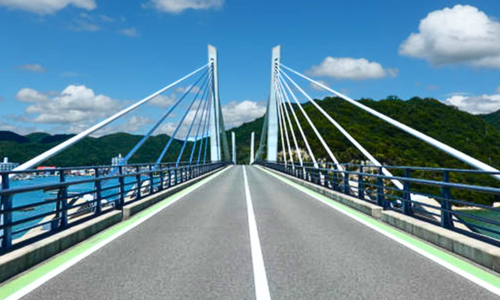

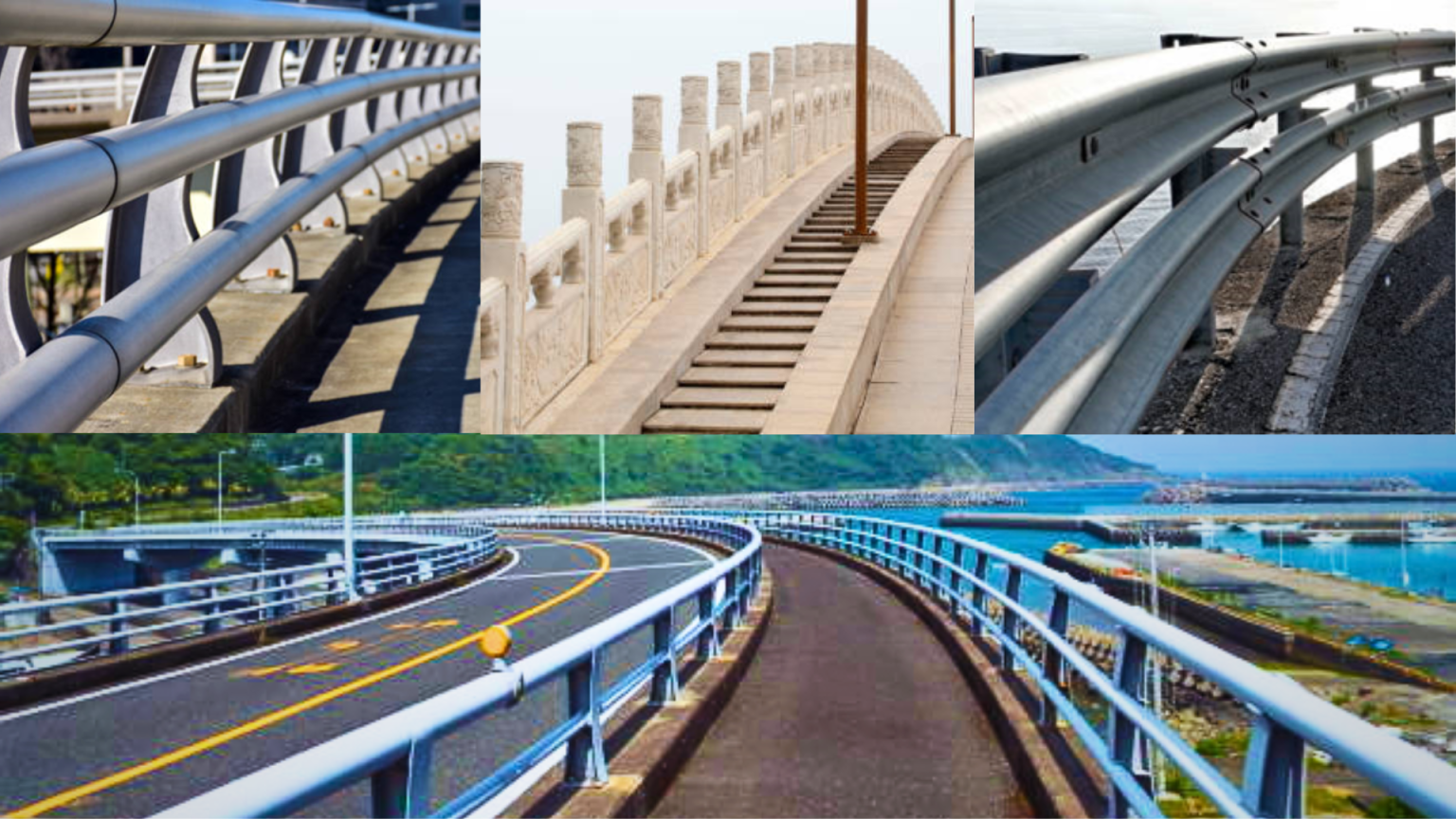

There are several types of bridge railings commonly used in bridge construction. The specific type of railing chosen for a bridge depends on various factors such as the location, bridge design, traffic volume, and aesthetic preferences. Here are some common types of bridge railings:
Concrete Bridge Railing
Concrete bridge railing refers to a type of bridge railing system that is constructed primarily using reinforced concrete. Concrete is a commonly used material for bridge railings due to its strength, durability, and ability to withstand impact forces.
There are several types of concrete bridge railings, including:
- Concrete Barrier Railings: Concrete barrier railings are made of reinforced concrete and are often used on bridges with high traffic volumes. They provide excellent durability and can withstand significant impact forces. Concrete barrier railings are typically precast and installed in sections along the bridge.

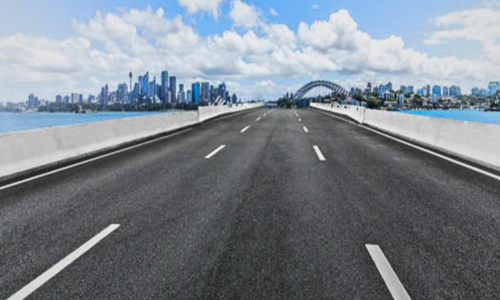

- Concrete Parapet: Concrete parapets are solid concrete walls or barriers installed along the sides of a bridge. They provide a high level of containment and are commonly used on bridges with high traffic volumes or where there is a risk of vehicle rollovers. Concrete parapets can be designed in various shapes and sizes to meet specific safety requirements.
- Concrete Balustrade: Concrete balustrades are decorative railing systems made of concrete. They are commonly used on bridges with architectural considerations or historical significance. Concrete balustrades can be designed with intricate patterns and details to enhance the aesthetics of the bridge.
- Precast Concrete Railings: Precast concrete railings are premanufactured sections of concrete railing that are installed on the bridge. They offer a cost-effective and efficient solution for bridge railings. Precast concrete railings can be designed to meet specific safety standards and can be customized to various shapes and sizes.
Steel Bridge Railing
Steel bridge railing refers to a specific type of bridge railing system that is constructed primarily using steel materials. Steel is a popular choice for bridge railings due to its strength, durability, and ability to withstand impact forces.
There are different types of steel bridge railings, including:

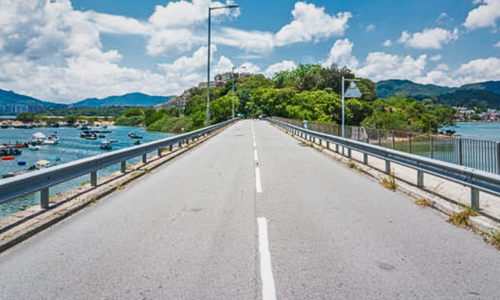

- Steel Beam Guardrail: This type of railing consists of steel beams supported by posts. Steel beam guardrails are commonly used on bridges with lower traffic volumes. They provide containment and redirect vehicles to prevent them from leaving the bridge deck.
- Box Beam Guardrail: Box beam guardrails are made of rectangular steel beams supported by posts. They offer a higher level of containment and are often used on bridges with higher traffic volumes. Box beam guardrails are effective in preventing vehicles from crossing over into opposing traffic lanes.
- Cable Railing: Cable railings are made of steel cables tensioned between posts. They provide a modern and aesthetically pleasing appearance and are commonly used on pedestrian bridges or bridges with architectural considerations. Cable railings offer visibility and can be designed to meet specific load requirements.
- Steel Tube Railing: Steel tube railings consist of steel tubes or pipes connected to vertical posts. They are versatile and can be customized to various designs. Steel tube railings are commonly used on bridges where aesthetics and visibility are important.
- Steel Wire Rope Railing: Steel wire rope railings are made of steel wire ropes tensioned between posts. They provide a lightweight and flexible railing option and are often used on bridges with scenic views or where a minimalistic design is desired.
Also Read:
W-Beam Bridge Railings

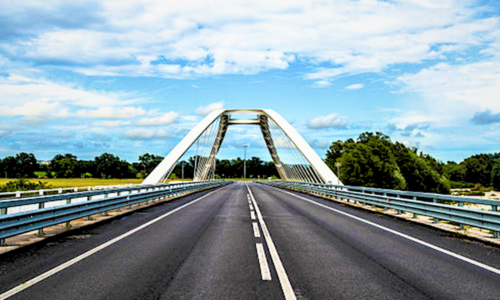

W-beam bridge railings refer to a specific type of bridge railing system that utilizes W-shaped steel beams as the primary structural element. W-beam railings are commonly used on bridges and highways to provide containment and redirect vehicles in the event of an impact.
The W-beam railing system consists of steel beams, known as W-beam sections, that are connected to vertical posts. The W-beam sections have a distinctive “W” shape, which provides strength and rigidity to the railing. The vertical posts are typically spaced at regular intervals along the bridge, and the W-beam sections are attached to these posts using bolts or other fastening methods.
Thrie Beam Bridge Railings
Thrie beam bridge railings are a type of bridge railing system that uses thrie beam sections as the primary structural element. Thrie beam railings are commonly used on highways and bridges to provide containment and redirect vehicles in the event of an impact.
Thrie beam railings are similar to W-beam railings but have an additional corrugation or wave pattern on the top surface. This wave pattern enhances the rigidity and strength of the railing, making it more effective in containing and redirecting vehicles.
