Box Culvert Reinforcement Layout

Designing the reinforcement layout for a box culvert involves determining the arrangement and spacing of reinforcement bars to ensure the structural integrity and load-bearing capacity of the culvert.

What is culvert?

A culvert is a tunnel that carries a stream beneath a roadway or railway. For traffic to pass through, a culvert can act as a bridge. They are usually found in natural water flows and are used as bridges or as current flow controllers.

Culverts are installed beneath roads and highways to enable river crossings since road embankments cannot be permitted to block water flow. The culvert is helpful for regulating water flow on a road.

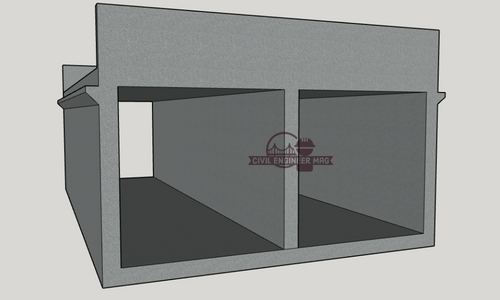

What is box culvert?

Box culverts are appropriate for crossing a stream with restricted flow beneath a road or railway bridge with high embankments because they are made up of two horizontal and two vertical slabs erected monolithically. Up to a span of 4 m, reinforced concrete rigid frame box culverts with square or rectangular apertures are employed. The vent’s height is usually not more than 3 meters.

Due to their rigidity and monolithic action, box culverts are cost-effective, and they don’t require separate foundations because the bottom slab acts as a raft slab, resting directly on the earth. Smaller discharges are handled by single-celled box culverts, whereas larger discharges are handled by multicelled box culverts. The carriageway and kerbs should be long enough for the barrel of the box culvert to accommodate them.

One of the most widely used culvert designs is the box culvert. Box culverts have a concrete bottom, which allows water to flow freely (although other materials might be utilized). Reinforced concrete is used to construct box culverts (RCC). When water needs to change direction or a substantial flow of water is predicted, some box culverts can be constructed utilizing composite construction.

Box culverts can also be built so that the roadway surface is also the top of the culvert. The most difficult aspect of constructing these types of culverts is that they require a dry area to be installed, so dewatering or water diversion will be required to finish the installation.

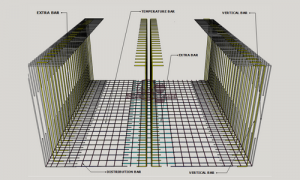

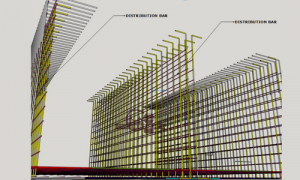

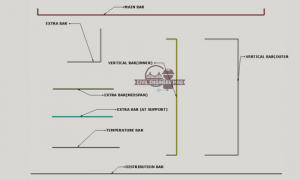

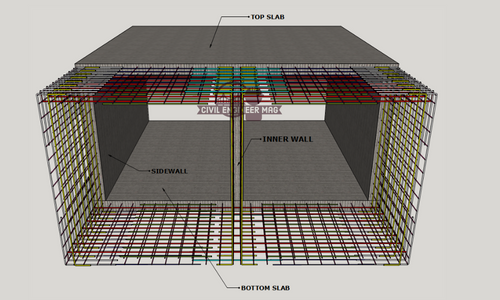

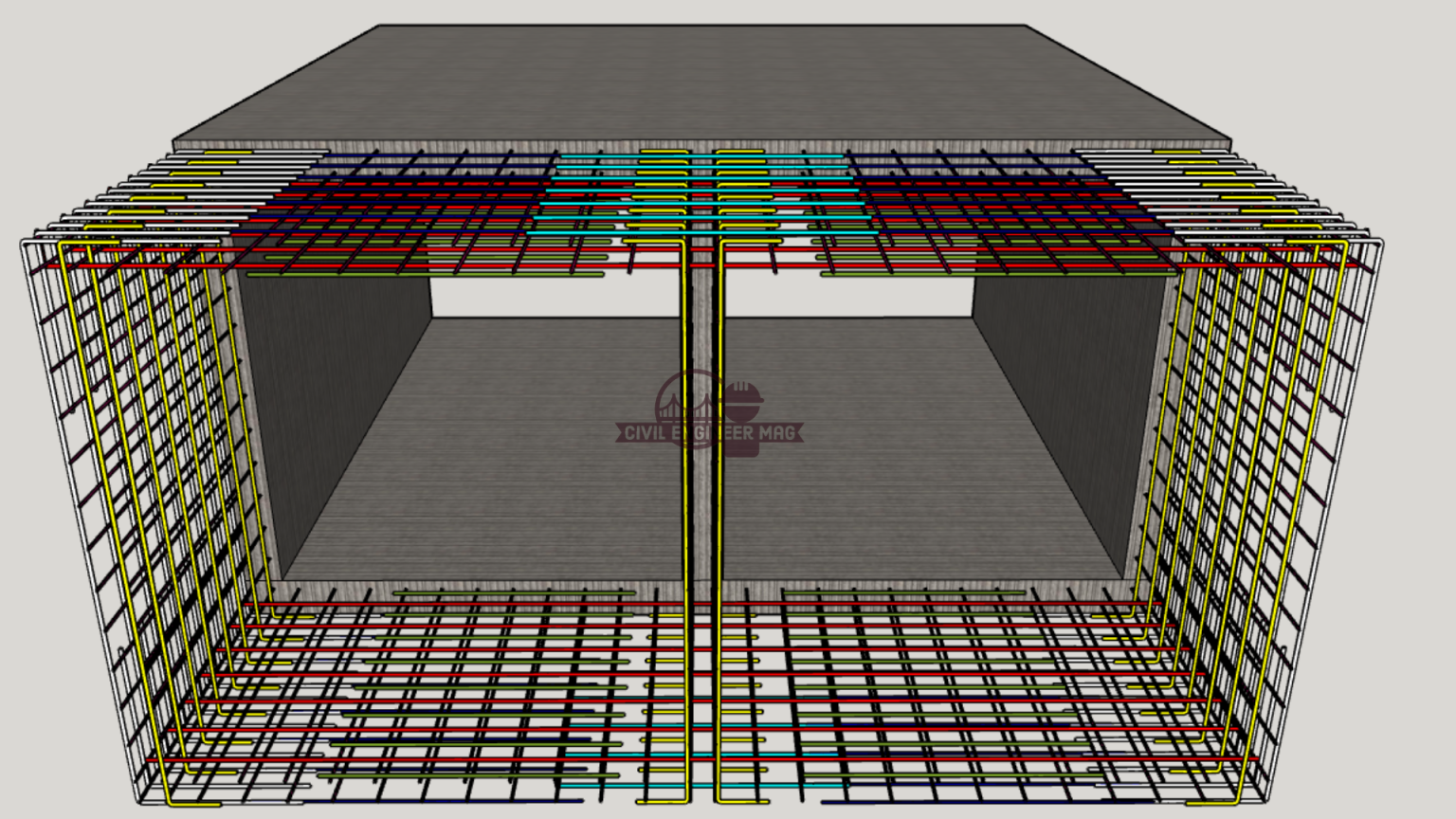

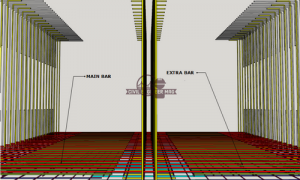

Box Culvert Reinforcement Layout

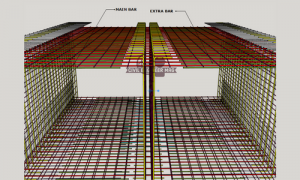

Top Slab

  • It is the structural component that permits vehicles to move. It’s a slab made of reinforced concrete.

  • It is the structural component that enables vehicles to move. It’s a concrete slab with reinforcement. To complete the road, asphalt is usually laid on top of the slab.

  • The top slab is designed for bending and shear forces generated by applied loads.

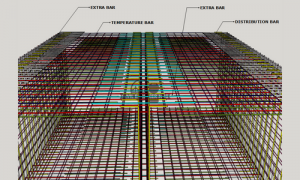

Bottom Slab

  • It serves as the box culvert’s base and is intended to withstand bending and shear pressures caused by the imposed loads.

Side Walls

  • They support the top slab’s vertical loads as well as bending moments.

Advantages of Box Culvert

  • The box culvert is a basic structure with a strong frame.
  • It’s ideal for non-perennial streams with shallow brush and weak soil.
  • The bottom slab of a box culvert reduces soil pressure.
  • Due to their stiffness and monolithic action, box culverts are cost-effective, and they don’t require separate foundations.
  • It’s used when the foundations are particularly weak.

Tips for Culvert Installation and Selection

Consider the following factors when selecting the right type of culvert for your project:

  • To minimize erosion concerns, the culvert must be installed at the proper elevation and grade.
  • Maintaining closed culverts can be difficult and will get more difficult as time passes. Maintenance costs should be considered in the decision-making process.
  • The culvert’s inlet and outlet must be properly planned and built. Mitered ends are the most efficient way to finish a culvert. Mitered ends will facilitate the flow process by allowing for the proper flow.
  • Flared culvert outlet ends can help to reduce or eliminate scouring.
  • To avoid erosion at the culvert outlet, it is suggested that rip-rap or similar structures be installed.
  • If necessary, backfill the culvert on the sides, bottom, and top with the appropriate aggregate material. The correct aggregate will keep the culvert from eroding and also keep it safe.
  • Culverts should be installed in natural draws on all roadways, if at all practicable.
  • Consider how much traffic will pass through the culvert and how deep it will be. If culverts aren’t planned correctly, they can collapse.
  • Before making the right decision, the cost of installation and the resources available should always be considered.

Read Also:

Other Things to Consider When Installing Culverts

Once you’ve decided on the type of culvert to use, double-check that all environmental permits are current. Verify that all NPDES standards have been met, as well as that the appropriate equipment is available to build the culvert, backfill it, and compact the soil as per engineering specifications.
