Different Types of Pipe Joints Used in Plumbing Systems
In this article, we will discuss the various types of pipe joints used in plumbing systems. Plumbing systems play a crucial role in our daily lives, providing us with access to clean water and the means to dispose of wastewater. To achieve this, different types of pipe joints are utilized to create secure and reliable connections in plumbing systems. Let’s explore the common types of pipe joints used in plumbing:
What is Plumbing?
Plumbing refers to a system of pipes, fixtures, and other apparatuses used for the distribution and disposal of water within a building or structure. It encompasses various activities and components related to water supply, drainage, and sanitation. The main objectives of plumbing systems are to ensure the availability of clean and safe drinking water, remove waste and sewage from buildings, and maintain proper hygiene and health standards.
Types of Pipe Joints Used In Plumbing
In plumbing, various types of pipe joints are used to connect and secure pipes together. The choice of pipe joint depends on factors like the type of pipe material, the purpose of the connection, the location of the joint, and the required strength and flexibility. Here are some common types of pipe joints used in plumbing:

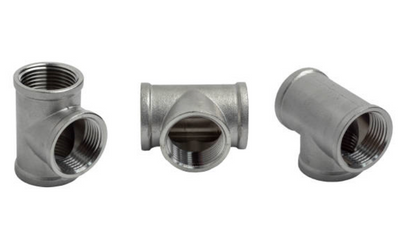

Threaded joint
Threaded pipe joints are a common type of pipe connection where threads are cut into the pipe ends, allowing pipes to be screwed together using fittings with matching threads. This method provides a secure and leak-resistant connection.
Threaded pipe joints are commonly used for connecting steel, iron, or other metal pipes in various plumbing, industrial, and commercial applications.
They are used in applications where easy assembly and disassembly are necessary, or where welding is not preferred.

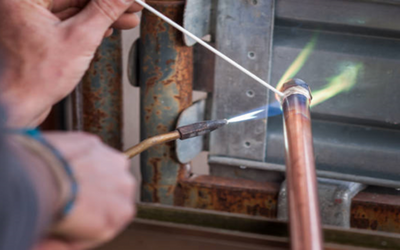

Soldered joint
A soldered joint is a common type of pipe joint used in plumbing, particularly with copper pipes. Soldering involves joining two pieces of metal using a melted filler metal (solder) that has a lower melting point than the metal being joined. Soldering is widely used for copper pipes in water supply systems due to its effectiveness, strength, and reliability.
Soldered joints are primarily used for joining copper pipes in water supply systems, heating systems, and other plumbing applications.

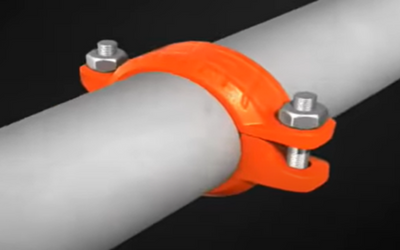

Grooved joint
A grooved joint is a type of pipe joint used to connect pipes in plumbing and other piping systems. It involves creating a groove on the pipe ends and using a coupling or gasket with complementary grooves to form a secure and leak-resistant connection. Grooved joints provide a convenient and efficient way to connect pipes without the need for welding, threading, or soldering.
Grooved joints are commonly used in various industrial, commercial, and plumbing applications, including HVAC systems, fire protection systems, water distribution, and more.
They are particularly useful in applications where rapid assembly and disassembly are required or where welding is impractical or undesirable.

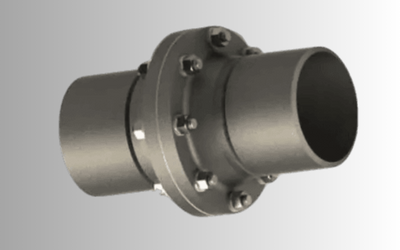

Flanged joint
A flanged joint is a type of pipe joint used to connect pipes, valves, pumps, and other equipment in a piping system. It involves using a pair of flanges, which are flat, circular components with aligned bolt holes, to create a strong and secure connection. Flanged joints are popular in a wide range of industries due to their strength, versatility, and ease of assembly and disassembly.
Flanged joints are widely used in industrial applications, including chemical plants, oil refineries, petrochemical facilities, power plants, water treatment plants, and more. They are commonly used to connect pipes, valves, pumps, and other equipment in a piping system.
Welded joint (Butt weld & socket weld)
Welded joints are types of pipe connections where two pipes or pipe components are joined together by melting and fusing the material at the joint. The welding process creates a strong and permanent connection, making it widely used in various applications. Two common types of welded joints are butt weld and socket weld.
Butt Weld

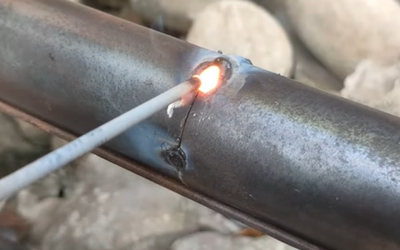

Butt welding is a widely used welding technique in which the ends of two pipes or pipe components are aligned and welded directly to each other. The joint can be created with or without filler material, depending on the application and welding process. Butt weld joints are widely used in various industries, including oil and gas, chemical processing, power generation, and shipbuilding.
Socket Weld

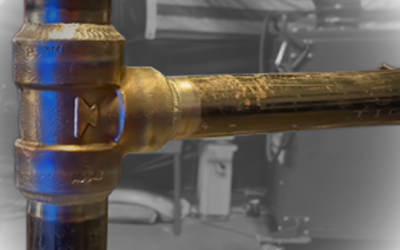

A socket weld joint is a type of welding joint where a pipe or tube is inserted into a recessed area (socket) of a fitting. The joint is then welded around the outside of the pipe at the socket. Socket weld joints are commonly used in smaller pipe sizes and applications requiring lower pressure. Socket weld joints are commonly used in smaller pipe sizes for applications such as petrochemical plants, food processing, and instrumentation systems.
Also Read:
Brazed joint

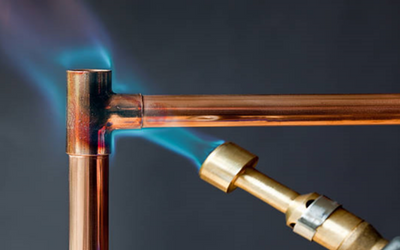

Brazing is a joining process used to connect metals together by melting and flowing a filler metal, called brazing alloy or filler rod, into the joint. Unlike welding where the base metals melt, in brazing, the base metals remain solid. Brazing is commonly used for joining materials like copper, brass, steel, aluminum, and other metals and alloys.
Brazed joints find applications in various industries, including automotive, aerospace, electronics, HVAC (heating, ventilation, and air conditioning), plumbing, and manufacturing.
Common applications include joining refrigeration components, electrical contacts, plumbing fittings, and assembly of intricate components in manufacturing.

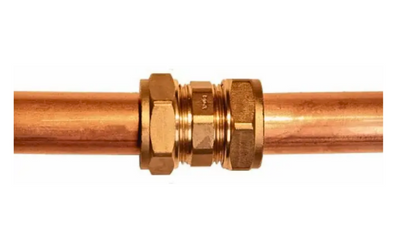

Compression joint
A compression joint is a type of pipe joint used to connect pipes in plumbing and other applications. It’s a popular and versatile method for joining pipes because it allows for a secure, leak-resistant connection without the need for welding, soldering, or specialized tools. Compression joints are typically used for connecting pipes made of materials like copper, brass, plastic, and other soft metals.
Compression joints are commonly used in household plumbing for connecting water supply lines to fixtures like faucets, toilets, and sinks. They are also used in other applications such as refrigeration, air conditioning, and gas lines.

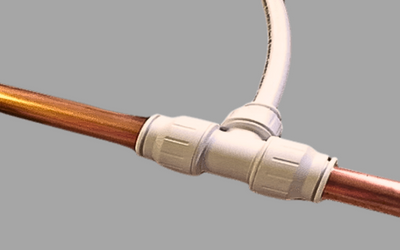

Push-fit joint
A push-fit joint is a type of pipe joint used to connect pipes or tubing without the need for specialized tools, soldering, or adhesives. It offers a quick and convenient method of joining pipes, making it ideal for DIYers and professionals alike. Push-fit joints are popular for their ease of use, speed of installation, and versatility in various plumbing and pneumatic applications.
Push-fit joints are commonly used in residential and commercial plumbing for connecting water supply lines to fixtures, valves, and appliances. They are also used in HVAC systems, pneumatic applications, and other fluid conveyance systems.

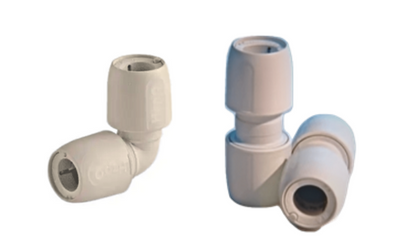

Hep2o joint
Hep2O is a brand of polybutylene (PB) push-fit plumbing system, known for its ease of installation and versatility. It’s commonly used in plumbing applications to create secure and leak-resistant joints without the need for specialized tools or skills. The Hep2O jointing system relies on push-fit fittings to connect pipes, making it quick and convenient for both professionals and DIYers.
Hep2O joints and fittings are widely used in residential and commercial plumbing for connecting water supply lines to fixtures, valves, and appliances.
