In this article, we’ll discuss the different types of bay windows and their materials, advantages, and disadvantages.

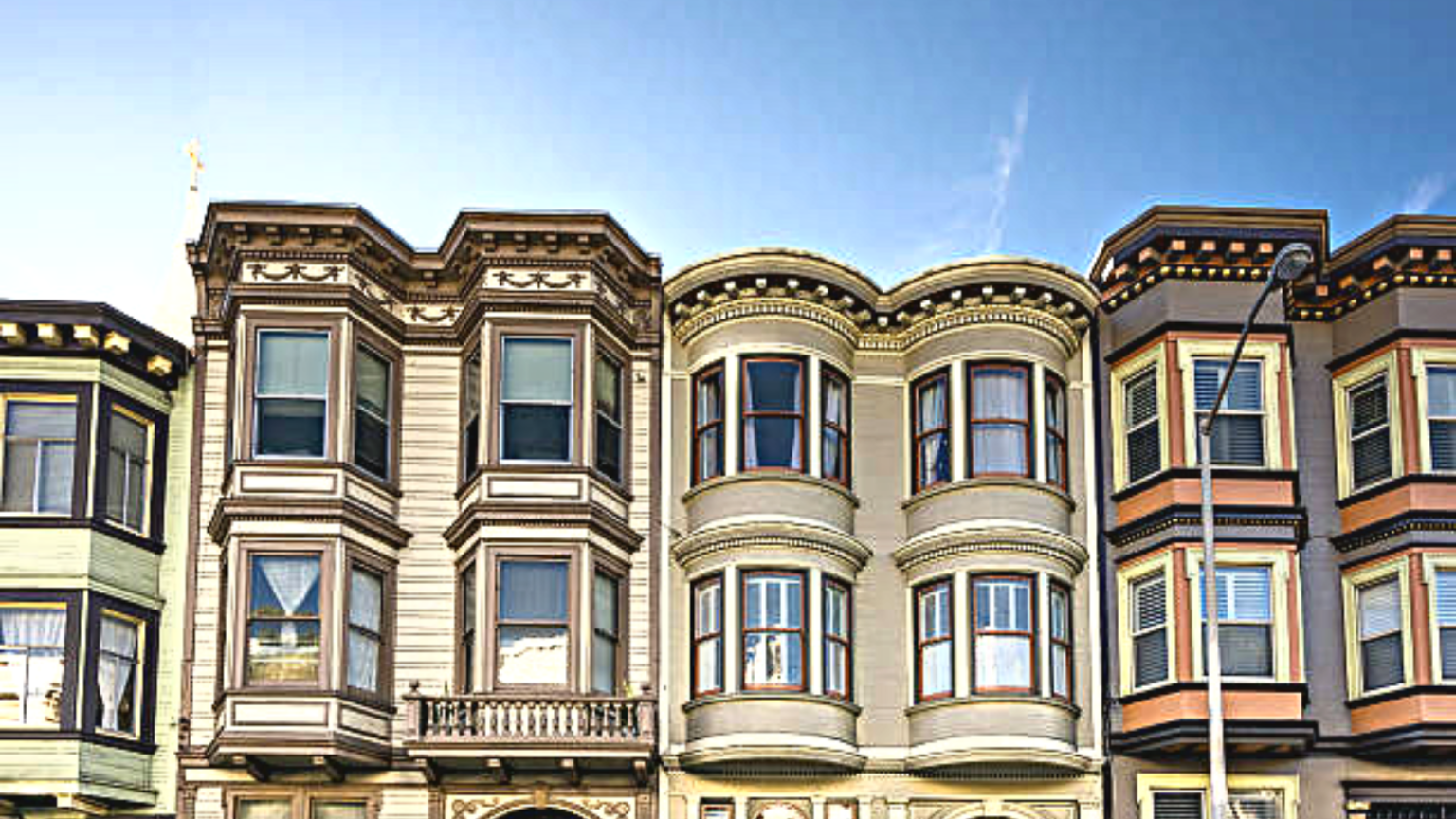

What is Bay Window?

Bay windows typically consist of three or more windows and create an angle that extends past the house’s exterior wall. Bay windows can be square, hexagonal, octagonal and other shapes.

Bay windows are very attractive and can make a significant difference in the overall appearance of a mansion. Additionally, bay windows add space to the room, making it appear larger than it is.

Type of Bay Windows

Windows are one of the most important aspects of a house. The house has windows of many different types. An adaptable addition to any home is a bay window. The house’s exterior gains more beauty and style, and the interior gains more space as a result. It provides the interior area of the house with more light and ventilation.

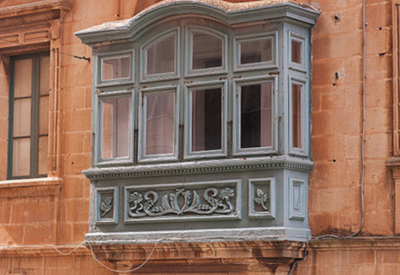

Box Bay Windows

Box bay windows have a box shape and a 90-degree angle. Typically, it has a large window in the center, two smaller windows on either side, and space for storage or a sitting area. Usually, plants or ornaments are displayed in these bay windows.

The box is usually placed below your head height, but it is occasionally placed in a kitchen to provide vision and light while not disrupting the shape of the house. These types of windows are more affordable than alternative options.

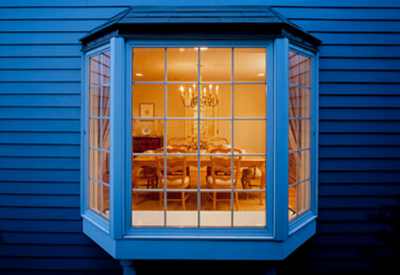

Canted Bay Windows

Canted bay windows are a modern version of the traditional bay window, with two sloped sides offset by a flat front.

These types of bay windows are only found on the first floor of buildings; the second, third, or fourth floors do not have them. This is the better option if you actually require a sizable bay window that lets in a lot of natural light on the first level.

A window’s side panel slants outward, while the front panel is level and parallel to the house facade. A canted bay window has a minimum of three and typically four separate windows.

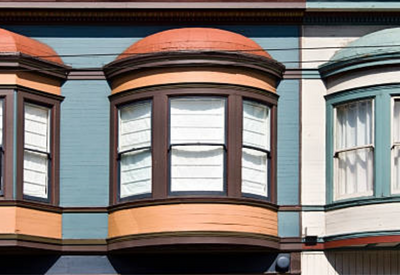

Circle Bay Windows

The most advanced types of bay windows are circle bay windows. Architects have experimented with bay windows throughout the centuries. The circle bay windows came into existence.

Typically, this style of bay window has a round shape. A circle bay window is created by joining several smaller windows into a single round window. A circle bay window is typically placed at a house’s corner.

Circle bay windows are larger than Oriel bay windows and more decorative than any other type of bay window. Circular window seats are frequently used with this style of bay window to add beauty and elegance to the space.

This style of bay window can be up to six feet high and can protrude two to three feet from the house.

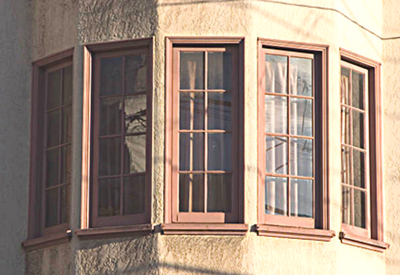

Bow Bay Windows

This style of bay window is ideal for any beautiful outdoor view. Bow bay windows have a curved design that protrudes from the house. Three or more casement windows are placed in a line to give a house a classic outward appearance.

These types of bay windows don’t reach the floor. This means that there are bow-bay windows not only on the ground floor but also on other floors. Bow bay windows are larger than Oriel and Box bay windows and serve a different purpose.

Bow bay windows provide a better view of the outside than standard windows.

Oriel Bay Windows

The oldest style of bay window is the oriel window. These windows are usually located above a building’s entrance or around a porch and are not connected to the ground.

This is the design to choose if you want a bay window on a higher floor that is more dramatic and appealing. These windows have a Gothic appearance, making them suitable for an older house.

Oriel windows stand out for their potential for stunning aesthetics because they frequently use exquisite wood, stone, or other materials along the bottom of the facade. They may be constructed on any floor of a home or other building.

Also Read:  Types of Windows | Types of Beam | Types of Ceiling Light Fixtures | Types of Wood Joints and Their Uses

Advantages and Disadvantages of Bay Window

Everything that is beautiful has some advantages and occasionally some disadvantages. Some of the advantages and disadvantages of bay windows are listed below

Advantages of Bay Window

A bay window can lighten up any room and make it appear larger. They allow for natural lighting and can provide excellent ventilation. Additionally, bay windows can be a wonderful addition to any house, both aesthetically and functionally. The following are some benefits of having a bay window:

• They bring light into any room. Adding a bay window to your home is a great way to let in natural light. They can also make any room appear larger and more open.
• They are an excellent source of ventilation because bay windows can be opened to let in fresh air. This can be a great way to ventilate stuffy rooms.
• They’re a great addition to any house. Bay windows can give any house charm and character. They are also a functional addition that can improve the comfort and livability of your home.

Disadvantages of Bay Window

• One disadvantage of bay windows is that finding curtains or blinds that fit properly can be difficult.
• They may also be drafty, allowing cold air to enter in the winter and hot air to enter in the summer. Additionally, compared to other window types, bay windows are frequently more expensive.
• Lastly, due to their size and shape, they can be difficult to clean.

Bay Window Materials

A bay window can be made from a variety of different materials. Wood is the most common type of material, but vinyl and aluminum are also options. It’s important to choose the right material for your home because each type has a unique set of advantages and disadvantages.

1. Aluminum.

Due to its strength, lightness, and ease of maintenance, it is the most popular option for bay windows. It can be recycled and will never rust. Any color you choose can be used to paint it.

The only disadvantage of aluminum is that some energy will be lost through the window because of how well it conducts heat and cold.

2. Clad

Clad bay windows have a maintenance-free exterior made of aluminum or vinyl. These windows can be found in a variety of designs and arrangements to meet the requirements of your home.

3. Steel

A bay window made of steel is a great choice because it is sturdy and long-lasting. It also requires little maintenance, which is crucial for a window that will be exposed to the elements. Steel windows can be painted in any color to perfectly match the appearance of your house.

4. Vinyl

Vinyl windows are the cheapest and lightest of the three commonly used window materials. They are primarily made of polyvinyl chloride (PVC), with reinforcements made of wood or metal.

Although vinyl windows do not require painting, they can become dingy and discolored over time. The majority of vinyl windows are smooth, but a few have a wood grain texture that gives them the appearance of wood without the upkeep.

The corner construction of newer vinyl windows is either welded or mechanically fastened, making them stronger and more weathertight than older models.

Although solid or hollow frames and sashes can be used to create vinyl windows, thermally broken frames and hollow sashes are more common because of their increased energy efficiency.

5. Wood

There are many different types of wood that can be used to make a bay window, but the most common is probably pine. Any other kind of wood you choose, such as cedar, spruce, or fir, may also be used. Consult your neighborhood hardware store for suggestions if you’re unsure of the type of wood to use.

Bay Window Configurations

There are numerous ways to configure your bay window, and the possibilities are almost endless. You have the option of having one large window or multiple smaller ones. Additionally, you have the option of combining windows of various sizes.

1. Casement Windows.

A casement window is a window with one or more hinges holding it to the frame. Although they can be hung horizontally as well, casement windows are typically hung vertically.

The weight can be distributed more evenly and there is a better seal against the elements when casement windows are installed in pairs or triplets. The size of the window and the type of hinge that will be used should be taken into account when choosing casement windows.

Casement windows can be made to fit almost any opening and are available in a range of sizes. It’s critical to select the appropriate casement window hinge for your application because there are numerous varieties available.

2. Picture Windows

A picture window is a sizable, fixed window that cannot be opened in a wall and is typically positioned in the middle of the wall to provide an unobstructed view. In order to allow visibility from inside the building outward, it is frequently made of glass. A picture window offers a wide-ranging view and can enlarge the appearance of small spaces.

3. Double Hung Windows

A double-hung window has operable upper and lower sashes. This implies that you can let in fresh air by opening both windows from the inside of your house.
Due to their simplicity of use and excellent ventilation, double-hung windows are among the most common types of windows. The only drawback is that they might be slightly more expensive than other kinds of windows.
