Concrete Pumps- Types and Advantages in Construction
Concrete pumps play a crucial role in the construction industry, enabling efficient and precise placement of concrete in various construction projects. In this article, we will discuss the different types of concrete pumps and their advantages in construction.
Pumping concrete is the process of transferring freshly mixed concrete from a central mixer or truck-mounted mixer to its final placement location using a concrete pump. This method is commonly employed in construction projects to efficiently and precisely place concrete in various positions, including high-rise buildings, foundations, slabs, and hard-to-reach areas.
What is Concrete Pump?
A concrete pump is a specialized machine used in construction to transfer freshly mixed concrete (typically a mixture of cement, aggregates, water, and sometimes additives) from a central mixing point, such as a concrete mixer truck or batching plant, to the desired location where it’s needed for construction purposes. Concrete pumps are designed to efficiently and precisely transport and place concrete in various locations, including hard-to-reach or elevated areas. They are a fundamental tool in the construction industry, particularly for large and complex projects.
Types of Concrete Pump
Concrete pumps are versatile equipment used to transfer liquid concrete from a concrete mixer or batch plant to the construction site. They provide a reliable and efficient method for placing concrete in various locations, ensuring precision and speed. There are several types of concrete pumps, each designed for specific construction applications and requirements. The two primary categories of concrete pumps are boom pumps and line pumps. Within these categories, there are various subtypes and specialized pumps. Here are the main types of concrete pumps:

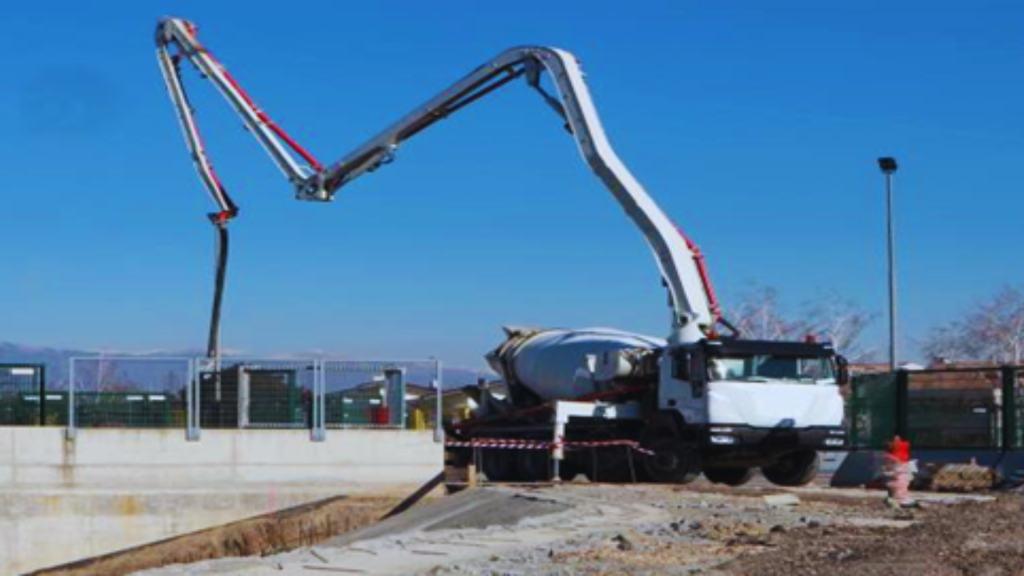

1. Boom Pump (Truck-Mounted Concrete Pump)
A boom pump is mounted on a truck chassis and has a long, articulating arm known as a boom. The boom can be extended and maneuvered in different directions, allowing the pump to reach high or distant locations. Boom pumps are commonly used for high-rise buildings, bridges, and other tall structures where precise concrete placement at significant heights is required.
Truck-Mounted Boom Pumps
These are the most common and versatile concrete pumps. They are mounted on trucks and have a long, articulating boom that can extend and maneuver to reach elevated or distant locations. Truck-mounted boom pumps are ideal for high-rise buildings and large construction projects.
Self-Climbing Placing Booms
These are tower placing booms that can climb the structure as it rises. They are commonly used in the construction of tall buildings and provide continuous concrete placement at various heights.
Advantages of Boom Pump
- Reach: Boom pumps have an articulated arm (boom) that can extend and reach significant heights and distances. This makes them ideal for tall buildings, bridges, and other structures where concrete needs to be placed at elevated or remote locations.
- Accuracy: Boom pumps provide precise control over the placement of concrete. The operator can maneuver the boom to direct the concrete exactly where it’s needed, reducing the risk of errors.
- Efficiency: Boom pumps can place large volumes of concrete quickly, which helps speed up construction projects. This efficiency can lead to cost savings by reducing labor and construction time.
- Versatility: Boom pumps are versatile and can be used in a variety of construction scenarios, including both residential and commercial projects.
- Safety: They allow operators to work from a safe distance, reducing the risk of accidents or injuries associated with manual concrete placement.
Limitations
- Boom pumps are typically larger and heavier than line pumps, which can make them less suitable for tight or confined job sites.
- They may require a larger crew for operation and setup.

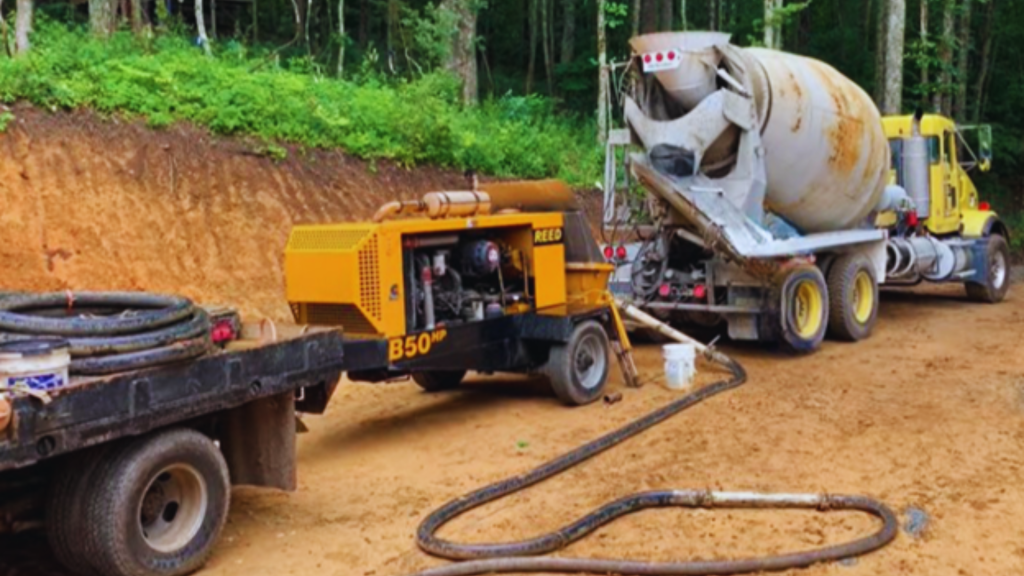

2. Line Pump (Trailer-Mounted Concrete Pump)
A line pump is typically mounted on a trailer and is more compact and portable than a boom pump. It uses a system of hoses to transfer concrete from the pump to the desired location. Line pumps are suitable for smaller construction projects, residential work, and situations where flexibility and precise placement are essential.
Trailer-Mounted Line Pumps
These are portable pumps mounted on trailers, making them suitable for smaller construction projects and residential applications. They use a system of hoses to move concrete from the pump to the placement location.
Skid-Mounted Line Pumps
These are similar to trailer-mounted line pumps but are mounted on a skid rather than a trailer. They are compact and can be easily transported and set up on the job site.
Truck-Mounted Line Pumps
These are line pumps mounted on trucks, providing mobility and versatility. They are often used in mid-sized construction projects and are a cost-effective option for precise concrete placement.
Advantages of Line Pump
- Flexibility: Line pumps are more compact and portable, making them suitable for smaller construction sites or locations with limited access. They can navigate through tight spaces and around obstacles.
- Cost-Effective: Line pumps are often more cost-effective for lower-volume concrete placements, such as residential foundations, swimming pools, and sidewalks.
- Versatility: They can handle various types of concrete mixes, including those with additives or admixtures.
- Ease of Setup: Line pumps are quicker and easier to set up than boom pumps, making them a good choice for smaller, and shorter-duration projects.
- Safety: Operators can work from a safe distance, reducing the risk of accidents or injuries associated with manual concrete placement.
Limitations
- Line pumps have limited reach compared to boom pumps. They may not be suitable for very tall structures or projects that require concrete placement at significant heights.
- They typically have a lower output capacity than boom pumps, so they are better suited for smaller-scale jobs.
- Line pumps may require additional labor for the setup of hoses and pipes.
3. Specialized Pumps
Shotcrete Pumps
These pumps are designed specifically for the application of shotcrete (sprayed concrete) and are commonly used in tunneling, slope stabilization, and swimming pool construction.
Grout Pumps
Grout pumps are used for precise placement of grout, a mixture of cement, sand, and water. They are used in applications such as foundation repair, soil stabilization, and sealing cracks.
High-Pressure Pumps
These pumps are capable of pumping concrete at higher pressures, making them suitable for applications where increased pressure is required, such as high-strength concrete mixes or long-distance pumping.
Squeeze Pumps
Squeeze pumps operate by squeezing a rubber hose to move the concrete. They are often used for pumping highly viscous or abrasive materials and in applications like underground mining.

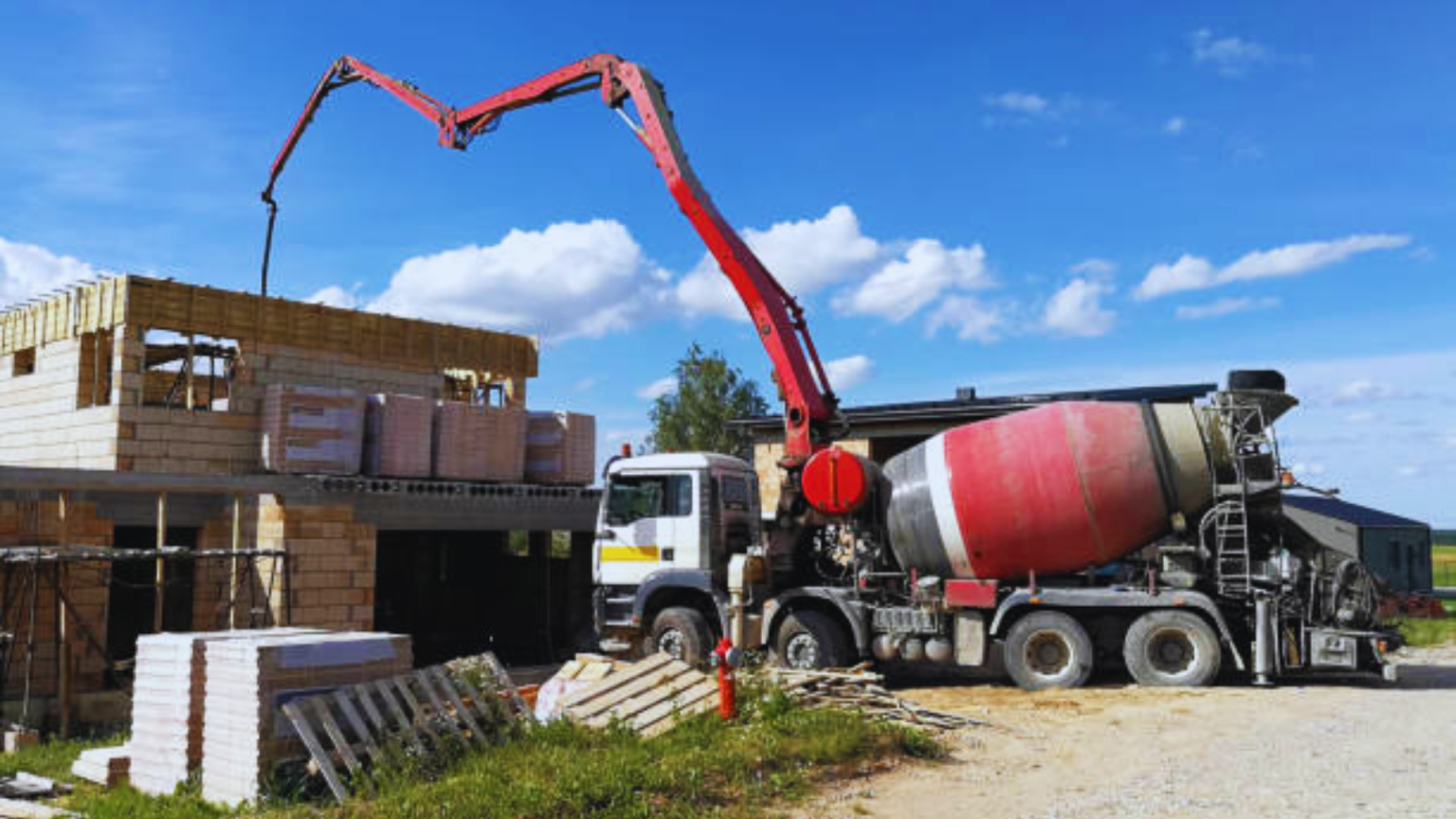

Process of Pumping Concrete
The process of pumping concrete involves several steps to ensure the efficient and precise placement of concrete at the desired location on a construction site. Here’s a detailed overview of the typical process:
Preparation and Setup
a. Site Preparation
Ensure the construction site is prepared and accessible for the concrete pump and other equipment.
b. Safety Measures
Implement safety protocols and ensure all workers are trained and equipped with appropriate safety gear.
c. Positioning the Pump
Place the concrete pump at a suitable location, considering factors like reach, stability, and accessibility to the pour site.
Preparation of Equipment
a. Checking Equipment
Inspect the concrete pump and related equipment for any damages, leaks, or malfunctions.
b. Prime the Pump
Prime the pump by adding water to the system to ensure it’s ready for pumping concrete.
Loading Concrete into the Hopper
a. Ready-Mixed Concrete Delivery
Arrange for a ready-mix concrete truck to deliver the concrete to the construction site.
b. Positioning the Truck
Position the concrete truck in a location where it can easily deposit the concrete into the hopper of the pump.
Connecting and Starting the Pump
a. Connecting Hoses and Pipes
Connect the hoses or pipes from the pump to the discharge outlet of the concrete truck.
b. Starting the Pump
Start the concrete pump and adjust the speed and flow according to the requirements of the project.
Pumping Concrete to the Pour Site
a. Guiding the Hose
Guide the flexible hose to the pour site, ensuring it reaches the desired location for concrete placement.
b. Controlling Flow and Placement
Control the flow and direction of concrete as it is pumped through the hose, ensuring it is accurately placed.
Monitoring and Adjusting
a. Monitoring the Pour
Continuously monitor the concrete flow, making adjustments as needed to maintain a steady and consistent pour.
b. Ensuring Quality and Consistency
Ensure that the concrete being placed meets quality standards and specifications for the project.
Completing the Pour
a. Ceasing Pumping
Stop the pump once the required amount of concrete has been placed at the pour site.
b. Cleaning and Maintenance
Clean the pump and hoses, and perform necessary maintenance to keep the equipment in good working condition for future use.
Post-Pour Evaluation
a. Inspecting the Placement
Inspect the placed concrete for evenness, proper consolidation, and any potential issues.
b. Addressing Any Concerns
Address any concerns or make adjustments as needed to ensure the concrete is appropriately placed and meets project requirements.
Advantages of Concrete Pumping
Efficiency: Pumping concrete is faster and more efficient than traditional methods, such as using wheelbarrows or chutes.
Accuracy: Concrete pumps offer precise control over the placement of concrete, reducing waste and ensuring uniformity.
Access: They can reach remote or elevated areas that are otherwise challenging to access.
Labor Savings: Fewer workers are needed for concrete placement when using pumps, reducing labor costs.
Safety Considerations
- Concrete pump operators must be trained and experienced to ensure safe operation.
- Proper setup and securing of the pump are essential to prevent accidents
- Personal protective equipment (PPE) should be worn, and safety protocols must be followed to mitigate risks associated with concrete pumping.
